This project is a functional, turn-based “Multiplication Game” developed in MIPS Assembly. It challenges the player to use multiplication facts to beat a computer opponent by being the first to connect four markers on a grid.
The implementation demonstrates core low-level programming concepts, including:
- Modular Code Architecture: Separation of concerns across multiple
.asmfiles. - Game Loop Logic: A classic Render-Input-Update cycle.
- Dynamic UI Rendering: Procedural generation of a game board and sidebar ASCII art.
- Simple AI Logic: A rule-based computer opponent that searches for valid moves.
1. Project Structure
The codebase is divided into several modules to handle specific tasks:
| File | Purpose |
|---|---|
main.asm |
The entry point of the application. |
game.asm |
Orchestrates the main game loop and turn management. |
data.asm |
Contains all string constants, board templates, and ASCII art. |
io.asm |
Handles player input and the computer’s decision-making logic. |
view_gameboard.asm |
Manages the visual rendering of the 6x6 product grid and markers. |
search.asm |
Contains utility functions to find values within the product list. |
connection_counter.asm |
Logic for calculating win conditions (adjacent markers). |
2. Core Engine
main.asm

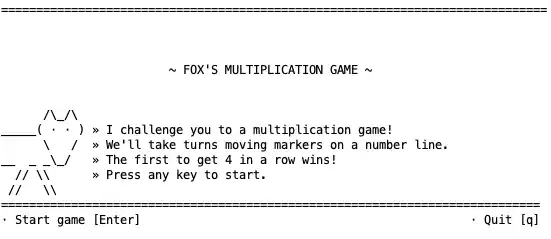

The entry point initializes the start screen and transitions into the main game loop.
.text
.globl main
main:
jal start_screen # Display Start Screen
# Wait for user to press a key to start
li $v0, 12 # syscall: read_char
syscall
j start_game # Jump to game loop
# Exit the game
.globl exit
exit:
li $v0, 10
syscall
.include "data.asm"
game.asm
This module manages the state of the game, toggling between the player and computer turns using bitwise operations (xori).
.text
.globl start_game
start_game:
# Initialize turn tracker
li $s0, 0 # Player turn = 0; computer turn = 1
game_loop:
# RENDER
jal game_board
# USER INPUT
li $v0, 12 # Read a single character
syscall
# Test for quit [q]
beq $v0, 113, exit
# UPDATE
la $t0, turn
lw $t1, 0($t0) # $t1 = current turn
bnez $t1, go_computer
go_player:
jal player_turn
j end_turn
go_computer:
jal computer_turn
j end_turn
end_turn:
jal update_product_list
# Toggle turn: if 0, make 1; if 1, make 0
la $t0, turn
lw $t1, 0($t0)
xori $t1, $t1, 1
sw $t1, 0($t0)
j game_loop # Repeat loop
.include "data.asm"
.globl turn
turn: .word 0 # 0 = player, 1 = computer
.globl products
products: .word 99, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, 18, 20, 21, 24, 25, 27, 28, 30, 32, 35, 36, 40, 42, 45, 48, 49, 54, 56, 63, 64, 72, 81
3. Game Data & Assets
data.asm
This file serves as the central repository for UI strings and the ASCII art used for the start screen and game board.
.data
start_screen_msg:
.ascii "______________________________\n"
.ascii "THE MULTIPLICATION GAME\n"
.ascii "Get 4 in a row before the computer and you win! \n\n"
.ascii "Press Enter to play now!\n"
.asciiz "______________________________\n"
gameboard_header: .asciiz "\n### MULTIPLICATION GAME ###\n"
player_marker: .asciiz "<>"
computer_marker: .asciiz "><"
number_line: .asciiz " 1 2 3 4 5 6 7 8 9"
newline: .asciiz "\n+----+----+----+----+----+----+"
top_border: .asciiz "+----+----+----+----+----+----+\n"
start_art:
.ascii " __ __ _ _ _ _ _ _ _\n"
.ascii "| \/ |_ _| | |_(_)_ __ | (_) ___ __ _| |_(_) ___ _ __\n"
# ... (additional ASCII art lines)
4. Input & Logic
io.asm

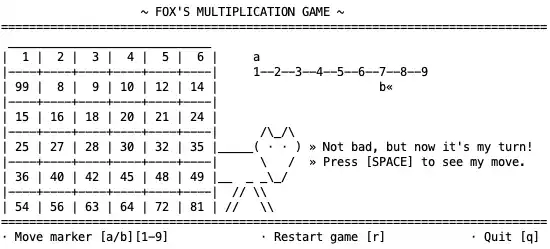

Handles user interactions and contains the automated “Computer Turn” logic, which scans the products list for viable moves.
.text
.globl player_turn
player_turn:
la $t2, marker_a
la $t3, marker_b
li $v0, 12 # Read marker selection (a or b)
syscall
move $t0, $v0
li $v0, 12 # Read numeric value (1-9)
syscall
move $t1, $v0
li $t4, 48
sub $t1, $t1, $t4 # Convert ASCII to Integer
beq $t0, 'b', update_b_marker
update_a_marker:
sw $t1, 0($t2)
j after_markers
update_b_marker:
sw $t1, 0($t3)
after_markers:
jr $ra
# --- Computer Turn Logic ---
.globl computer_turn
computer_turn:
# Logic to iterate through 1-9 and find a product
# currently available in the products list.
# ... (Looping and multiplication logic)
jr $ra
search.asm
A utility module used to determine if a calculated product exists in the game grid.
.text
.globl contains_number
contains_number:
la $t0, products # Pointer to products array
li $t1, 0 # Index counter
search_loop:
beq $t1, 36, not_found
lw $t3, 0($t0)
beq $t3, $a0, found
addi $t0, $t0, 4
addi $t1, $t1, 1
j search_loop
found:
li $v0, 1 # found = true
move $v1, $t1
jr $ra
not_found:
li $v0, 0 # found = false
jr $ra
5. Visual Rendering
view_gameboard.asm

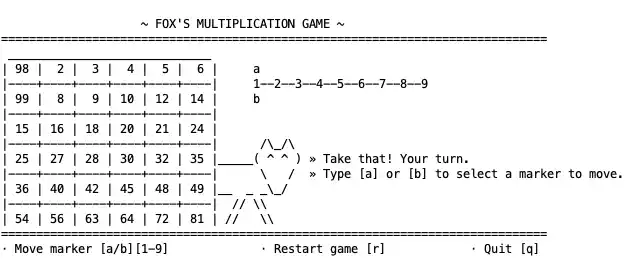

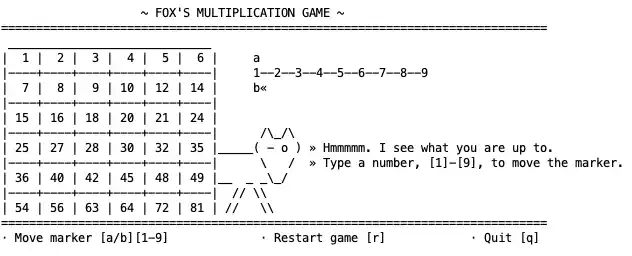

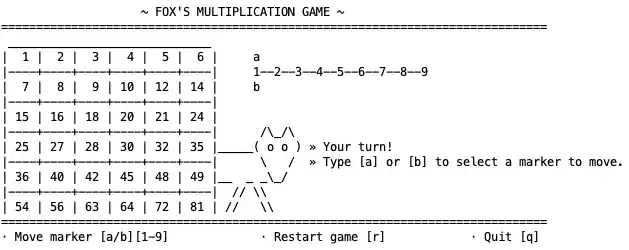

This is the most complex UI component. It procedurally draws the 6x6 grid, inserts the markers (<> or ><), and aligns the sidebar ASCII art.
.text
game_board:
header:
li $v0, 4
la $a0, gameboard_header
syscall
board_construction_loop:
beq $t1, 36, board_footer
lw $t2, 0($t0) # Load product
# Logic to print borders, padding, and markers...
# Calculate row wrapping
addi $t3, $t1, 1
rem $t3, $t3, 6
bnez $t3, skip_nl
# Print row sidebar and newline...
skip_nl:
addi $t0, $t0, 4
addi $t1, $t1, 1
j board_construction_loop
6. Win Condition Logic
connection_counter.asm
Calculates how many adjacent markers exist for a given position on the board. This is essential for determining when a player has achieved “4-in-a-row.”
# a0 is the argument = index in products list
.globl count_connected
count_connected:
# Logic to check horizontal, vertical, and diagonal neighbors
rem $t0, $a0, 6 # Calculate position in row
jr $ra
Conclusion
This MIPS project showcases how high-level game mechanics can be distilled into assembly instructions. By managing memory directly and utilizing the limited register set of the MIPS architecture, “The Multiplication Game” provides a robust example of low-level systems programming.
